General description

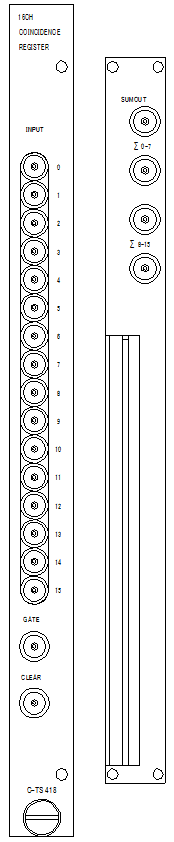

C-TS 418 16CH Coincidence Register is able to take 16 channels coincidence for one gate input signal. The input signal is memoried to the independent data register and read out by coincidenced CAMAC function. Also SUM of 1 to 8 channel and 9 to 16 channel is output from the rear panel. The current is 4mA±3% for 1 bit coincidence,in case of that connection of cascade and terminated 25Ω, it is Max -1V.

Specifications
＊GATE Input：1
Input signal ：FASAT NIM
Input impedance ：50Ω
Minimum input pulse width：4ns
＊CLEAR Input ：1
Input signal ：FAST NIM
Input impedance ：50Ω
Minimum pulse width ：16ns
＊Number of input channel ：16
Input signal ：FAST NIM
Input impedance ：50Ω
＊Minimum coincidence pulse width ：3ns
＊Number of SUM output ：4(1-8,9-16CH)
＊Power supply ：+6Ｖ 0.2A,-6V 1.3A,-24V 0.1A

CAMAC function
N・F(0)・A(0) ：READ COINCEDENCE REGISTER
N・F(2)・A(0) ：READ DATA REGISTER & CLEAR
N・F(9)・A(0) ：CLEAR
N・F(25)・A(0) ：TEST REGISTER (ALL BIT SET)

CAMAC command
Z,C ：CLEAR
I ：GATE INPUT INHIBIT
