  • N-TS 223
  • 16CH TTL / NIM Level Adapter

・Overview

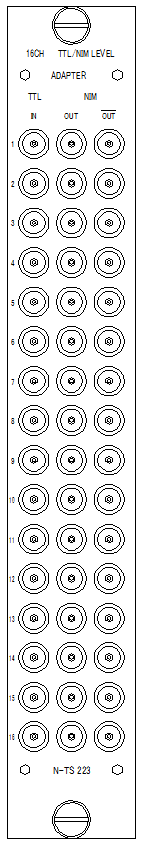

NTS223FP

GENERAL DESCRIPTION
N-TS 223 16CH TTL TO NIM LEVEL ADAPTER has 16 transformation circuits.(TTL→FAST NIM) This module has 2 FAST NIM(OUT,-OUT) output with 1 TTL input.





SPECIFICATIONS
*NUMBER OF CHANNEL : 16
*INPUT SIGNAL : TTL
*INPUT IMPEDANCE : High Impedance (50Ω by slide switch on pc-board)
*INPUT FREQUENCY : < 100MHz
*NUMBER OF OUTPUT : 2 Normal ; 1 , Complementary ; 1
*OUTPUT SIGNAL : FAST NIM
*PROPAGATION DELAY : 10ns
*IN-OUTPUT CONNECTOR : LEMO-TYPE (00.250)
*POWER SUPPLY : -6V=900mA , +6V=80mA
*PACKAGING : NIM STANDARD SINGLE WIDTH MODULE
