GENERAL DESCRIPTION

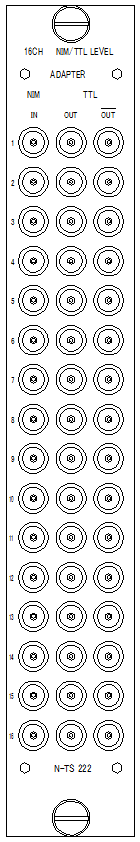

N-TS 222 16CH NIM TO TTL LEVEL ADAPTER has 16 circuits that convert FAST NIM to TTL. 1 input of FAST NIM for 2 outputs of TTL,one is normal(OUT) and other is complimentary output(-OUT).

SPECIFICATIONS
＊NUMBER OF CHANNEL : 16
＊INPUT SIGNAL :FAST NIM (50Ω impedance)
＊INPUT PULSE WIDTH : > 5ns
＊INPUT FREQUENCY : > 100MHz
＊NUMBER OF OUTPUT NUMBER : 2 Normal ; 1 , Complementary ; 1
＊TTL OUTPUT : 50Ω driver
＊PROPAGATION DELAY : Approximately 10ns
＊IN-OUTPUT CONNECTOR : LEMO-TYPE (00.250)
＊POWER SUPPLY : -6V=0.42A , +6V=0.4A
＊PACKAGING : NIM Standard single width module
