General Description

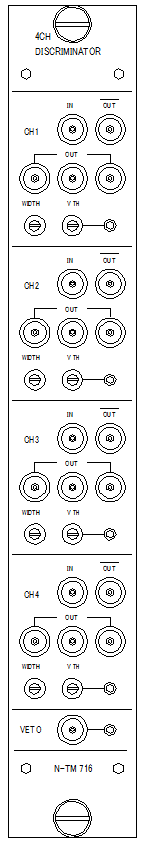

N-TM 716 4CH DISCRIMINATOR is discriminator of Non-Updating of 4 channels.Threshold level and output pulse width can adjust it every each channel. Threshold level is able to adjust it from -10mV to -1V. The output pulse width can adjust it by the potentiometer on front panel from about 3ns to 70ns.The VETO input is common all the channels.

SPECIFICATIONS
*NUMBER OF CHANNEL :4
*INPUT
INPUT IMPEDANCE :50Ω
THRESHOLD :-10mV to -1V
MAXIMUM RATE :80MHz
MINIMUM PULSE WIDTH :Approximately 3ns
PROTECTIONS :+0.7V,-1.4V(by the silicone diodes)
*VETO INPUT
IMPEDANCE :50Ω
SIGNAL :FAST NIM
BIN GATE INPUT :Rear connector pin-36 (ON-OFF with switch）
*OUTPUT
NUMBER OF OUTPUTS :3(OUT),1(-OUT)/ch
OUTPUT SIGNAL :FAST NIM
WIDTH :about 3ns to 70ns
*CONNECTORS :LEMO-TYPE (00.250)
*POWER REQUIREMENTS ：+6V=60mA,-6V=1.1A
*PACKAGING :NIM standard single width module
