GENERAL DESCRIPTION

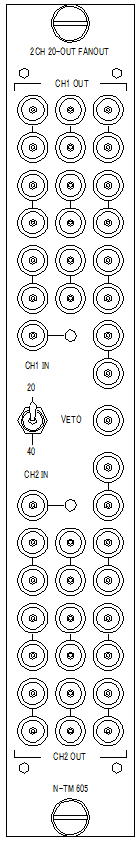

N-TM 605 2CH 20-OUT FANOUT is the module that has 2 channels that output 20 fanout to 1 input.This is selectable of that 40 outputs with a 1 channel(selected by toggle switch on panel). The VETO input is common 2 channels. LED of front panel lights by input.(Not lighted ; input signal <15ns,frequency >20MHz and input VETO)

SPECIFICATIONS
＊NUMBER OF CHANNEL : 2 (or 1）
＊INPUT IMPEDANCE : 50Ω
＊INPUT SIGNAL : FAST NIM
＊INPUT SIGNAL WIDTH : > 5ns
＊INPUT FREQUENCY : < 75MHz (At the time of 5ns)
＊VETO INPUT : 1 (FAST NIM)
＊OUTPUT NUMBER : 20 (or 40)
＊OUTPUT SIGNAL : FAST NIM (Pair output -32mA)
＊POWER SUPPLY : -6V=1.13A , +6V=50mA
＊PACKAGING : NIM Standard single width module
