GENERAL DESCRIPTION

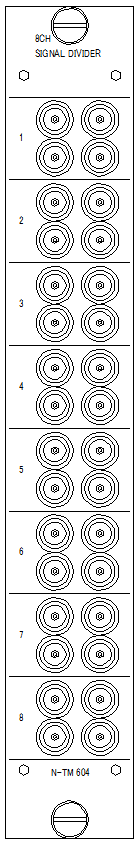

N-TM 604 8CH SIGNAL DIVIDER(4-terminals) divides the analogue signal from the detector into 3 signals.Constitution ; The circuits of 8 channels divide by resisters 4-terminals.The characteristic impedance is 50Ω.The metal membrane resistance of high accuracy is being used.

SPECIFICATIONS
＊NUMBER OF CHANNEL : 8
＊TERMINAL NUMBER : 4 / channel
＊IMPEDANCE : 50Ω
＊CONNECTOR : LEMO-TYPE (00.250 insulation type)
＊POWER SUPPLY : None
＊PACKAGING : NIM Standard single width module
