GENERAL DESCRIPTION

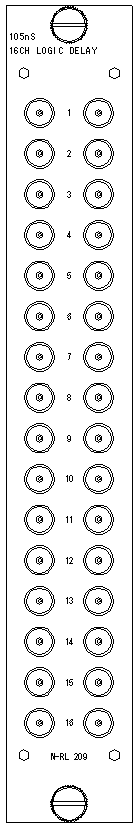

N-RL 209 16CH FIXED LOGIC DELAY 105ns is Delay Module that used for experimentation needs timing. The Module has 16 isolated delay circuits in standard NIM single width package.It can be used for experimentation handle high speed logic signal because FAST MIN.pulse width is 10ns.

SPECIFICATIONS
＊NUMBER OF INPUT : 16
＊INPUT IMPEDANCE : 50Ω
＊REPEATEDLY FREQUENCY : < 70MHz (When pulse width 10nsec)
＊PULSE WIDTH : >10ns
＊INPUT SIGNAL : FAST NIM
＊ NUMBER OF OUTPUT : 16
＊OUTPUT IMPEDANCE : 50Ω
＊OUTPUT SIGNAL : FAST NIM
＊DELAY TIME : 105ns±3ns
＊IN-OUTPUT CONNECTOR : LEMO-TYPE (00.250)
＊POWER SUPPLY : -6V=1.1A
＊PACKAGING : NIM Standard single width module
