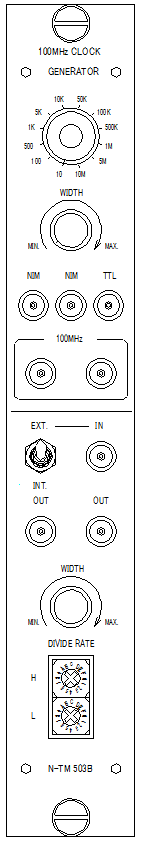

General Description
N-TM 503B 100MHz CLOCK GENERATOR is the module that has the pulse generator(100MHz) and prescaler.The pulse generator part is composed of the output (FAST NIM) that produces 100MHz pulse generator and 12 positions of frequency (10Hz, 500Hz, 1KHz, 5KHz, 10KHz, 50KHz, 100KHz, 500KHz, 1MHz, 5MHz, 10MHz). This 12 positions of frequency selected by the rotary switch. This output is FAST NIM and TTL signal (50Ω driver).Also, the pulse is able to adjust output width.The prescaler part has the preset counter of 8bit.This function is divided by the setting of the DIP switch(256 step).The input is selected INT.(300MHz) and EXT. by the toggle switch.The input frequency of EXT. IN is maximum 500MHz (FAST NIM).This output pulse (FAST NIM) is able to adjust width.

SPECIFICATIONS
＊NIM/TTL　(50Ω DRIVER)　 OUTPUT PART
FREQUENCY : 10Hz, 500Hz, 1KHz, 5KHz, 10KHz, 50KHz, 100KHz, 500KHz, 1MHz, 5MHz, 10MHz
PULSE WIDTH : Approximately 5ns～70ns
OUTPUT : NIM 2 , TTL 1
OUTPUT CONNECTOR : LEMO-TYPE (00.250）
＊NIM FIXATION OUTPUT PART
FREQUENCY : 100MHz
NUMBER OF OUTPUT : 2

＊PRESCALER PART
INPUT IMPEDANCE : 50Ω
INPUT SIGNAL : RF or FAST NIM
INPUT FREQUENCY : < 500MHz
INPUT SWITCHING : EXT. or INT. (100MHz) by the changeover toggle switch
PRESET COUNTER : 8 bits
OUTPUT PULSE WIDTH : Approximately 1.5ns～50ns
OUTPUT SIGNAL : FAST NIM
IN-OUTPUT CONNECTOR : LEMO-TYPE (00.250）
POWER SUPPLY : +6V=0.15A , -6V=0.8A
PACKAGING : NIM Standard single width module
